公司產品
公司的核心產品—各種型號的連續逆流(超聲)提取機,它凝聚了超聲提取、動態逆流提取、連續自動排渣過濾、連續動態循環蒸發濃縮、殘渣殘留溶劑回收、尾氣殘留溶劑回收、特種密封等15項專利和關鍵技術,實現了全程密封條件下的連續化運行、自動化控制,在低溫或常溫條件下實現快速提取、濃縮,是一套高效、節能、安全、環保的生物技術裝備,廣泛應用于從天然植物中生產制備中成藥、天然色素、香精香料、食品添加劑、保健品、化妝品、飼料添加劑、植物農藥等產品,特別適用于大規模使用有機溶劑提取熱敏性物質。
Continuous Counter-flow Ultrasonic Extraction Complete Machinery, as core products, has agglomerated of 15 patents and know-how technologies, such as ultrasonic extraction, dynamic counter-flow extraction, continuous filtration with automatic outlet of cake, low-temperature evaporation concentration, high efficient recovery of organic solvent, specific mechanic seal etc. The machinery realizes continuous production and automatic control under seal condition, and realizing fast extraction production under low and normal temperature through the whole process. It is wildly used for extracting and producing Chinese Traditional Medicine, natural colors, flavors and fragrances, food additives, health products, cosmetics, feed additive, plant pesticides etc from various plants. It is used most suitable for extracting and producing in large scale heat sensitive extracts by organic solvent.
Continuous Counter-flow Ultrasonic Extraction Complete Machinery, as core products, has agglomerated of 15 patents and know-how technologies, such as ultrasonic extraction, dynamic counter-flow extraction, continuous filtration with automatic outlet of cake, low-temperature evaporation concentration, high efficient recovery of organic solvent, specific mechanic seal etc. The machinery realizes continuous production and automatic control under seal condition, and realizing fast extraction production under low and normal temperature through the whole process. It is wildly used for extracting and producing Chinese Traditional Medicine, natural colors, flavors and fragrances, food additives, health products, cosmetics, feed additive, plant pesticides etc from various plants. It is used most suitable for extracting and producing in large scale heat sensitive extracts by organic solvent.
產品分類
產品展示
![]() |
產品屬性
產品名稱: | 擠出機 |
產品編號: |
產品描述
1.簡介
擠出機是公司核心產品之一,是全密閉連續化運行智能化控制植物提取線的關鍵設備之一,專用于提取后的渣中殘留溶液的擠壓回收,提高收率,減少浪費,對于有機溶劑,減少后道蒸脫回收的蒸汽用量。
公司生產的擠出機采取單螺桿錐體型式,連續化擠壓,轉速可調。
本公司生產的擠出機,完全按照GMP的規范要求設計、生產制造。

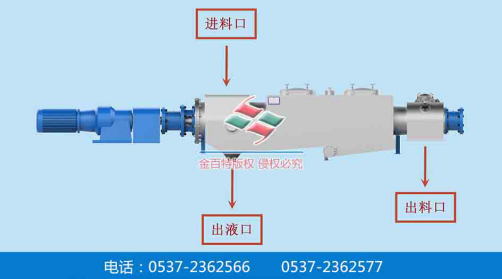

2.工作流程和原理
提取渣進入擠出機后,被強制擠壓,擠出的溶液直接回流到提取管中;擠出后的渣料直接排放(水提)或進入蒸脫烘干機(溶劑提?。┲?,進行溶劑回收。
3.效率和質量指標
擠出后,渣料中殘留含液量大約在60%~75%之間。備注:不同植物原料、不同溶劑,殘留量不同。
4.應用范圍
各種提取后植物物料和水、甲醇、乙醇等的混合料。
5.設備構成
控料倉
擠出機
在線料位計
變頻器
在線清洗裝置,快開式觀察和清洗手孔
6.材質
材質有sus304、sus316L等選擇,也可根據客戶的要求定做特種材質。

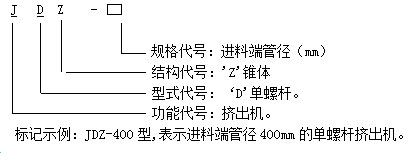

7.型號代號
8.型號規格及圖片

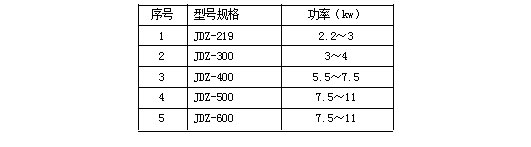

型號規格一覽表

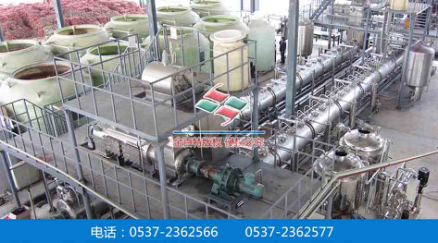

9.典型工程實例:
3000kg/h紫甘薯提取生產線
