產品名稱: | 旋筒式分離器及連續渣液分離裝置 |
產品編號: |
產品描述
1.簡介
連續渣液分離裝置是全密閉連續化運行智能化控制植物提取線的關鍵設備之一,專用于提取液的連續渣液分離,保證連續逆流提取機系統運行的穩定性,減小提取液含渣量,減輕后道過濾的壓力。
連續渣液分離裝置的核心設備是旋筒式分離器。
2.工作流程及原理
提取液被泵打入旋筒式分離器中,在分離器中,溶液和顆粒性物質被篩網分開,溶液(包含粒徑比篩網更小的顆粒)穿過篩網流向后道過濾;粒徑比篩網大的顆粒(含有一定量的溶液)被篩網截留,重新回到提取管中。
3.效率和質量指標
過濾精度:40~60mesh。
4.連續渣液分離裝置的構成
渣液輸送泵
旋筒式分離器
連續回渣控制器
自動反沖裝置
提取液儲罐
在線液位計
變頻器
在線清洗裝置,快開式觀察和清洗手孔
5.材質
材質有sus304、sus316L等選擇,也可根據客戶的要求定做特種材質。
6.旋筒式分離器型號代號

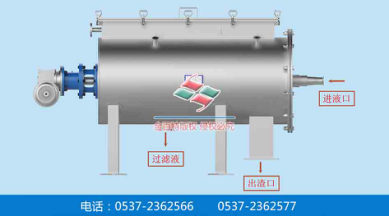

7.旋筒式分離器型號規格及圖片
型號規格一覽表

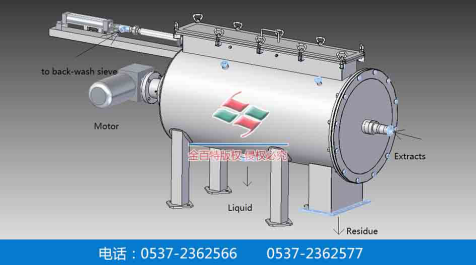

8.連續渣液分離裝置三維設計圖片
9.典型工程實例:

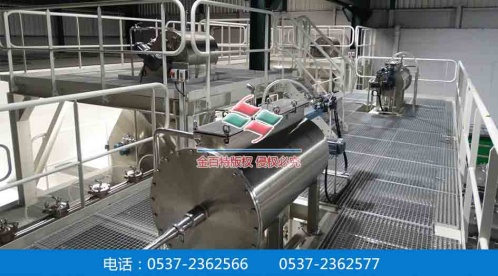

1500kg/h紅豆杉提取生產線----實例照片
